T-Display P4

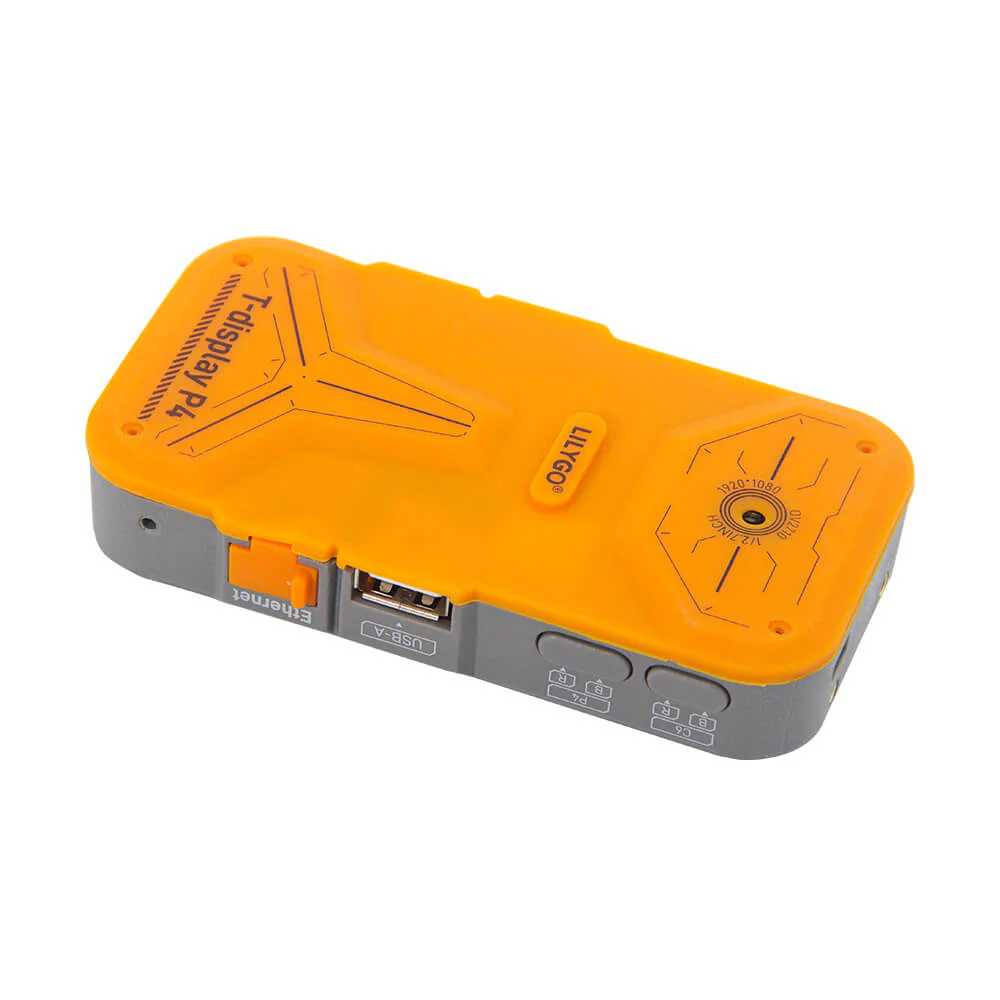

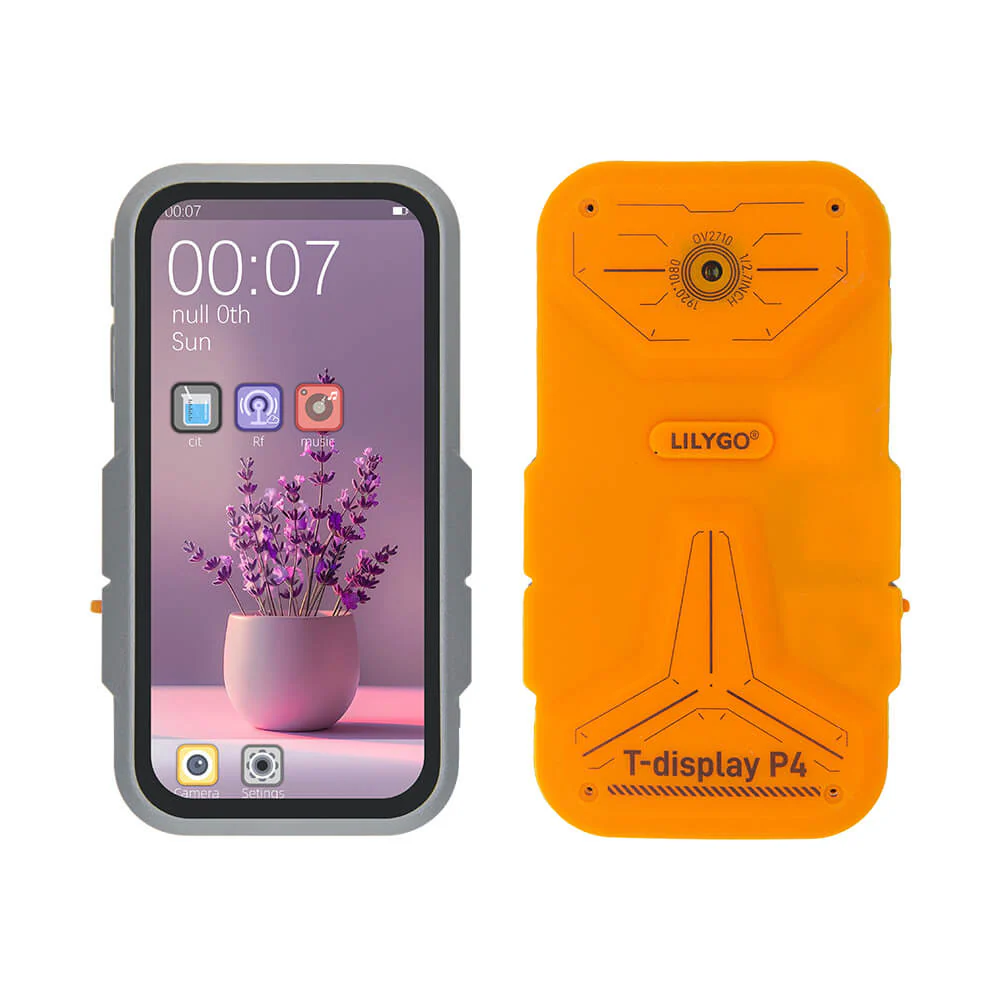

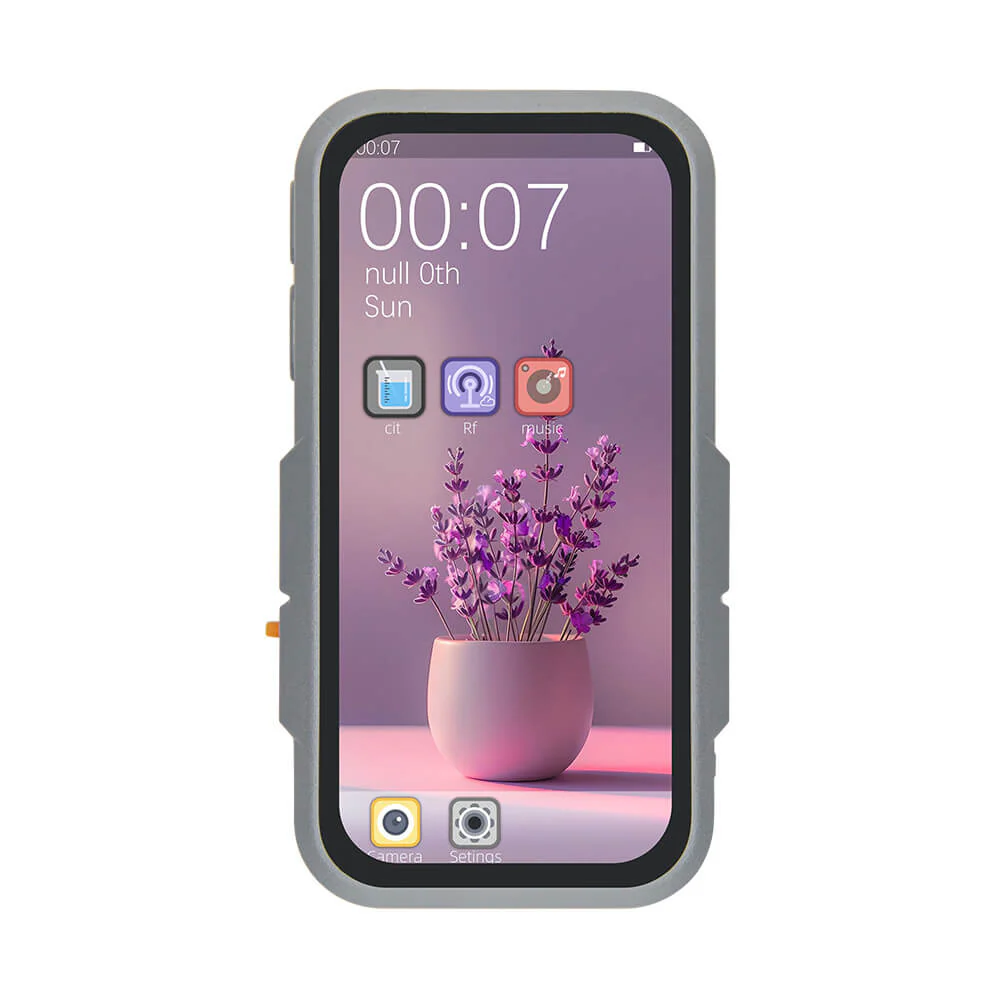

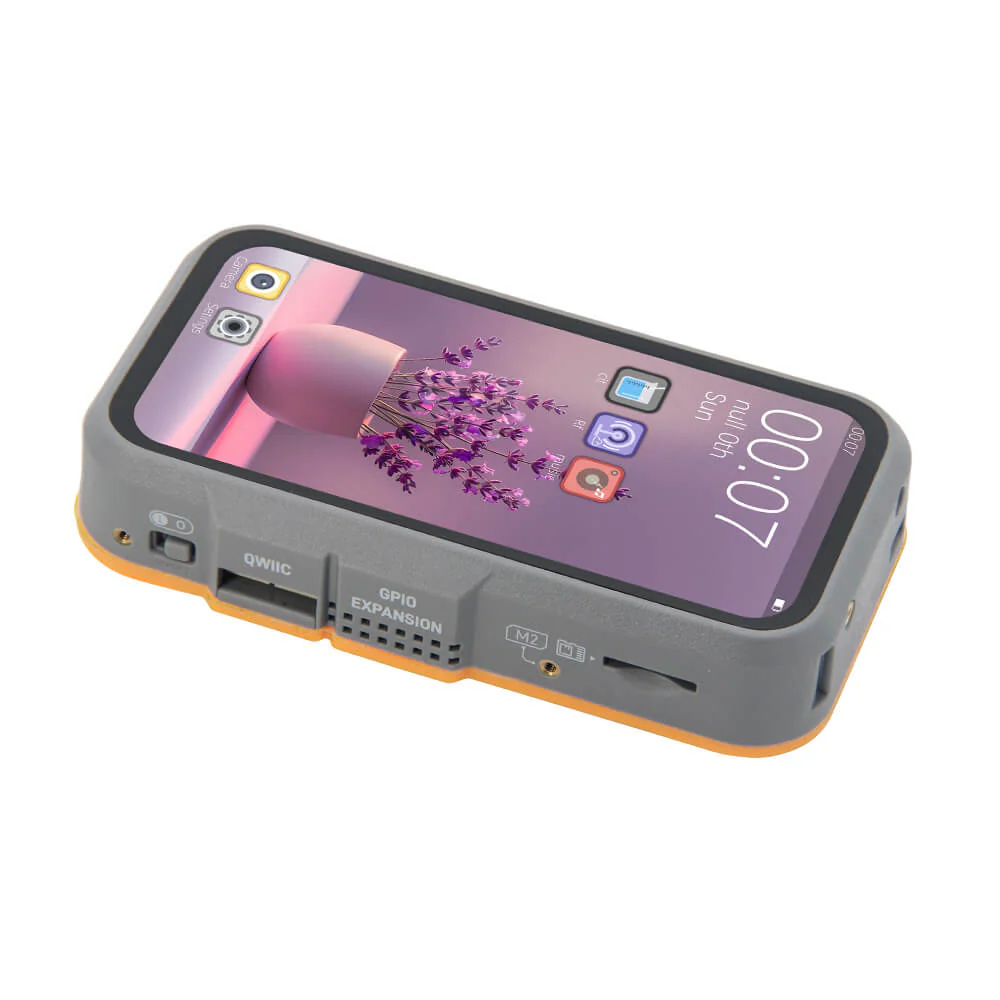

Based on the ESP32-P4 platform, available in AMOLED (rear camera) and TFT punch-hole display (under-screen camera) versions.

Specifications

MCU1	ESP32-P4,RISC-V Dual-core 360Mhz + Single 40Mhz
Features	Powerfulimage and Voice processing JPEG Codec,ISP, PPA, H264 Encoder, MIPI CSI, MIPI DSI
Flash	16MB
PSRAM	32MB
Platform	ESP-IDF,VS code
GPS Module	L76K

MCU2	ESP32-C6
Features	2.4 GHz Wi-Fi6(802.11ax), Bluetooth 5(LE)
Onboard function	Capacitive touch screen+TFT/AMOLED optional l2S Speaker & Microphone & Motor+ RTC+ Ethernet Expandablel/0 supports external Keyboard Board
LoRa Module	SX1262
2MP MIPI Camera	0V2710/ 1080p@30 fps,720p@60 fps
Charge Management	LGs4056H
I2C Battery Gauge	BQ27220
12C GPl0 Expansion lC	XL9535/ 24-pin CMOSIc 16-bit GPIO
9-AxiS MEMS IMU	lCM20948/ MotionTracking + DMP
Size	63 x109x22mm
USB Charging	5V, 500mA

Tech Support

ℹ️Product information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community and post a description of the problem, and our engineers will help you directly.

What's In The Box

4.1 Inch AMOLED [H753] Version

4.05 Inch TFT [H753-01] Version

Select Version

Select Frequency (SX1262)

From $29.22

Original: $97.40

-70%

T-Display P4—

$97.40

$29.22

Select Version

Select Frequency (SX1262)

From $29.22

Original: $97.40

-70%

T-Display P4—

$97.40

$29.22

Product Information

Shipping & Returns

Description

Based on the ESP32-P4 platform, available in AMOLED (rear camera) and TFT punch-hole display (under-screen camera) versions.

Specifications

MCU1	ESP32-P4,RISC-V Dual-core 360Mhz + Single 40Mhz
Features	Powerfulimage and Voice processing JPEG Codec,ISP, PPA, H264 Encoder, MIPI CSI, MIPI DSI
Flash	16MB
PSRAM	32MB
Platform	ESP-IDF,VS code
GPS Module	L76K

MCU2	ESP32-C6
Features	2.4 GHz Wi-Fi6(802.11ax), Bluetooth 5(LE)
Onboard function	Capacitive touch screen+TFT/AMOLED optional l2S Speaker & Microphone & Motor+ RTC+ Ethernet Expandablel/0 supports external Keyboard Board
LoRa Module	SX1262
2MP MIPI Camera	0V2710/ 1080p@30 fps,720p@60 fps
Charge Management	LGs4056H
I2C Battery Gauge	BQ27220
12C GPl0 Expansion lC	XL9535/ 24-pin CMOSIc 16-bit GPIO
9-AxiS MEMS IMU	lCM20948/ MotionTracking + DMP
Size	63 x109x22mm
USB Charging	5V, 500mA

Tech Support

ℹ️Product information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community and post a description of the problem, and our engineers will help you directly.

What's In The Box

4.1 Inch AMOLED [H753] Version

4.05 Inch TFT [H753-01] Version
